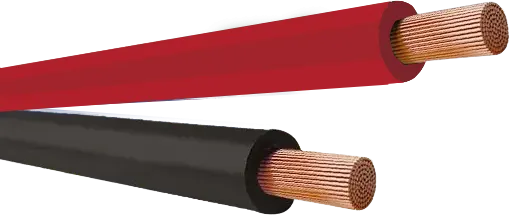

Industrial Single Core Cable
PVC Flexible Cables
- Special heat resistant insulation
- Higher current carrying capacity
- Fine copper wires
- Highly thermal stable insulation
- Excellent resistant to moisture, abrasion, grace, oil
- Longer flex life
- Excellent mechanical & electrical properties
- Tested by SGS, EIL, RITES, NPC, INTERTEK
- Operating Temp -15° C to +70° C / +90° C / +105°C
Application
- Power wiring to appliance Sockets, Machineries, Industrial lighting, Penal boards, Batteries, D.C. power Transfer etc.
Standard Cable Packing
- Industrial Cables: Coil 90m, 100m, 500m, 2000m, in carton boxes, reels.
Color Coding
| AS IS 1554 (Indian Standard) & AS IEC 60502 Part-1, B.S. 6346 | |
|---|---|
| Single Core | Red or Black |
*Any required colours on specific request
Technical Data Table
| Industrial Cables | |||||
|---|---|---|---|---|---|
| Single core Industrial flexible Cable up to 1100V | |||||
| Nominal cross sectional area of conductor | Number/Nominal dia. Of strands | Nominal insulation thickness | Max. Overall diameter | Max. conductor resistance at 20°C | current rating |
| Sq. mm | Mm | Mm | Mm | Ω/km | Amp |
| 0.50 | 16/0.20 | 0.60 | 2.60 | 39.0 | 6 |
| 0.75 | 24/0.20 | 0.60 | 2.80 | 26.0 | 9 |
| 1.00 | 32/0.20 | 0.60 | 3.00 | 19.5 | 14 |
| 1.50 | 30/0.25 | 0.60 | 3.80 | 13.3 | 18 |
| 2.50 | 50/0.25 | 0.70 | 4.00 | 7.98 | 24 |
| 4.00 | 56/0.30 | 0.80 | 4.80 | 4.95 | 32 |
| 6.00 | 84/0.30 | 0.80 | 6.40 | 3.30 | 42 |
| 10.00 | 140/0.30 | 1.00 | 8.00 | 1.91 | 55 |
| 16.00 | 224/0.30 | 1.00 | 9.60 | 1.21 | 75 |
| 25.00 | 350/0.30 | 1.20 | 10.50 | 0.78 | 100 |
| 35.00 | 490/0.30 | 1.40 | 12.50 | 0.554 | 125 |
| 50.00 | 703/0.30 | 1.40 | 13.50 | 0.386 | 165 |
| 70.00 | 988/0.30 | 1.40 | 15.50 | 0.272 | 240 |
| 95.00 | 1349/0.30 | 1.60 | 18.50 | 0.206 | 300 |
| 120.00 | 608/0.50 | 1.60 | 20.50 | 0.161 | 325 |
| 185.00 | 943/0.50 | 1.80 | 25.50 | 0.106 | 400 |
| 240.00 | 1223/0.50 | 2.00 | 28.00 | 0.0801 | 475 |
| 300.00 | 1528/0.50 | 2.20 | 31.50 | 0.0641 | 550 |
| 400.00 | 2035/0.50 | 2.40 | 36.00 | 0.0486 | 670 |
| 500.00 | 2553/0.50 | 2.60 | 41.00 | 0.0384 | 750 |
Note: The Design and manufacturing of Hifuni Pumps Private Limited's Products are subject to constant improvement. The product supplied may differ in some details from specifications/illustrations given in this website. Kindly contact company's nearest branch office for proper model selection for your application.
